Home Energy Storage

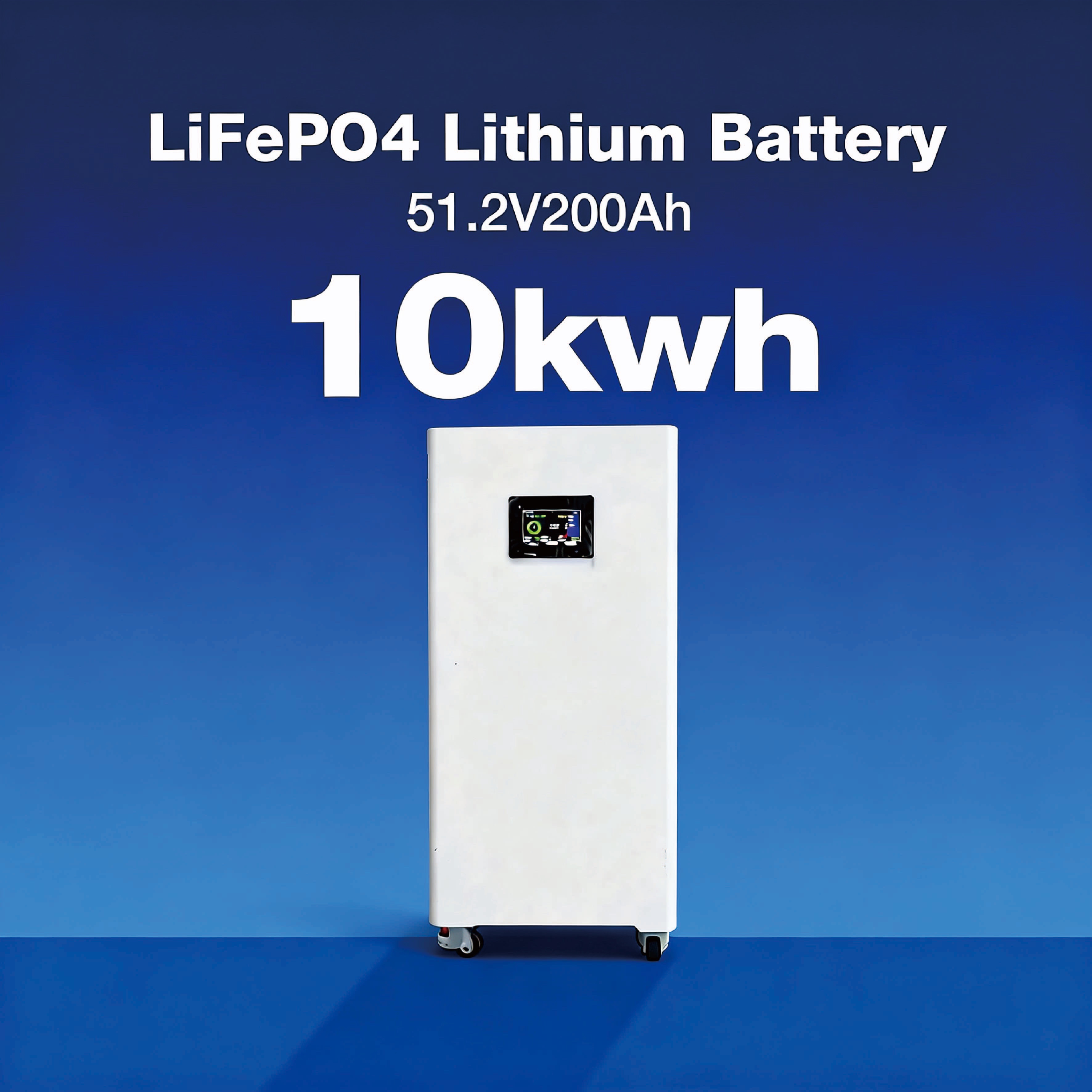

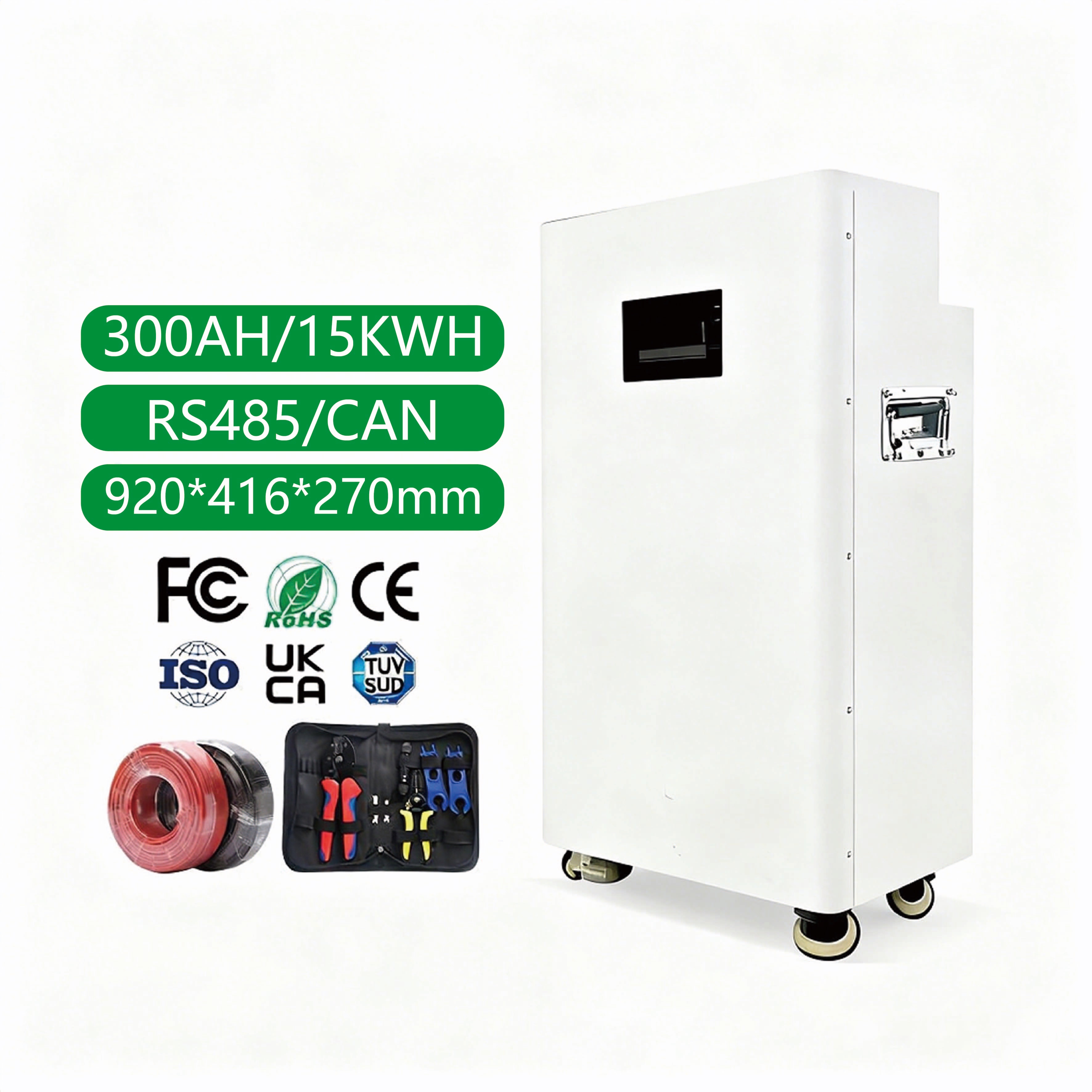

Floor-Standing LiFePO4 Battery
A mobile 51.2V battery platform with five capacity options from 8 to 18 kWh, app monitoring, touchscreen control, and flexible off-grid or hybrid operation.
- Five capacity options: 8, 10, 15, 16 and 18 kWh
- Wi-Fi monitoring with real-time data through the app
- Large touchscreen for local system visibility
- Off-grid and hybrid output with multiple charge and discharge modes
Core Features
Applications
Residential solar storage
Office and small business backup
Off-grid power systems
Key Specifications
← Swipe to compare all models →
| Model | LPF-160AH | LPF-200AH | LPF-300AH | LPF-314AH | LPF-360AH |
|---|---|---|---|---|---|
| Battery Cell Material | Lithium Iron Phosphate (LiFePO4) | ||||
| Nominal Voltage | 51.2V | ||||
| Nominal Capacity | 160Ah | 200Ah | 300Ah | 314Ah | 360Ah |
| Nominal Energy | 8kWh | 10kWh | 15kWh | 16kWh | 18kWh |
| Upper Charge Voltage | 57.6V | ||||
| Discharge Cut-off Voltage | 44.8V | ||||
| Cycle Life | ≥6,000 cycles | ||||
| Battery Cell Layout | 16S | ||||
| Product Dimensions (W×D×H) | 770×416×270mm | 770×416×270mm | 920×416×270mm | 920×416×270mm | 920×416×270mm |
| Packing Dimensions | 830×460×420mm | 830×460×420mm | 970×460×420mm | 970×460×420mm | 970×460×420mm |
| Net Weight | 82kg | 84kg | 108.4kg | 108.4kg | 124.5kg |
| Gross Weight | 98kg | 102kg | 124.5kg | 124.9kg | 141.5kg |
| Protection | IP20 | ||||
| Maximum Parallel | 16 units | ||||
| Short-Circuit Protection | Supported; recovery after load disconnected | ||||
| Communication Port | RS485 / CAN | ||||
